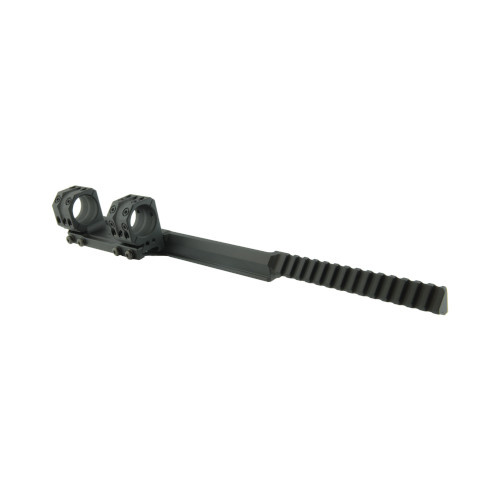

SPUHR NV Clip-On Adapter

The A-700 NV Clip-On Adapter allows the user to position a clip-on image intensifier in front of – and aligned with – the primary optics of the weapon. The user can adjust the angle of the A-700 from 0 to 13 MIL (0 to 44.4 MOA) as to achieve the same tilt as the ISMS mount the A-700 is being attached to. This minimizes the optical distortion between the image intensifier and the primary optic – thus maximizing target identification and hit probability.

Note: The A-700 is designed for use with the SP-**01 and SP-**02 non-cantilever series of mounts and should not be used on rifles with heavy recoil.

Length (total): 410 mm/16.14"
Length (from face of mount): 300 mm/11.81”
Length (of Picatinny): 140 mm/5.51”
Weight: 200 g/7.0 oz
